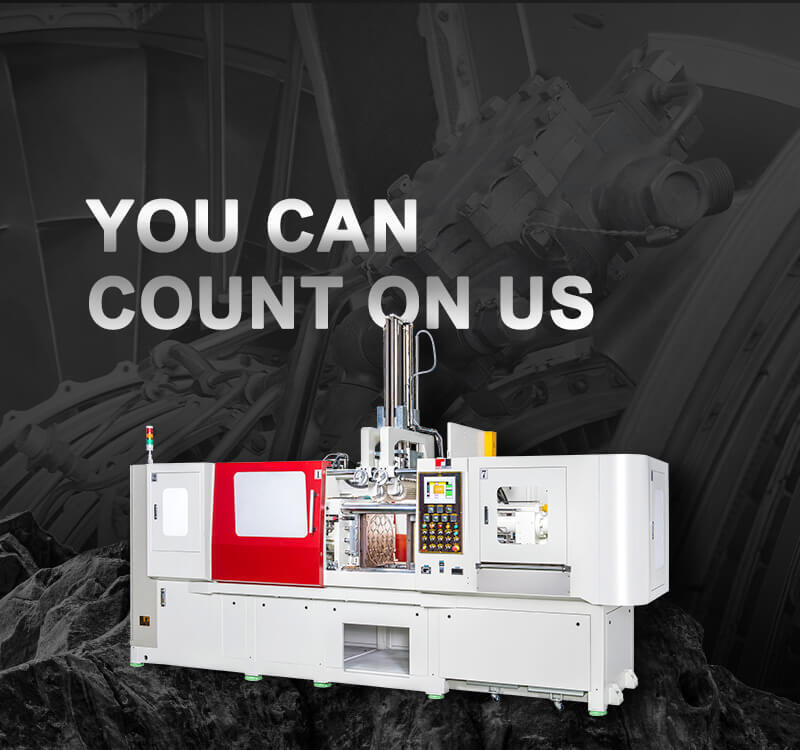

LIQUID SILICONE RUBBER INJECTION MOLDING MACHINE
OPTION：mold opening system：INJ
| MODEL | VACUUM | clamping forec | injection volume | mold opening system | ||
| LSR | V | TON | CC | RT | FIFO | FILO |
| have/not |
| clamping forec(TON) | injection volume(c.c) | Heating Platen size(mm) | injection pressure(kg/cm²) | motor | daylight(mm) | stoke of main ram | screw diameter |
| 100 | 200 | 400X400 | 700 | 11KW | 500 | 400 | ψ40 |
| 200 | 200/400 | 500X500 | 700 | 11KW | 500 | 400 | ψ40/50 |
| 250 | 400/800 | 600X600 | 700 | 11KW | 500 | 400 | ψ50/60 |
| 350 | 800 | 700X700 | 700 | 15KW | 500 | 400 | ψ60 |
| Special Specifications | Please Contact Us | ||||||
